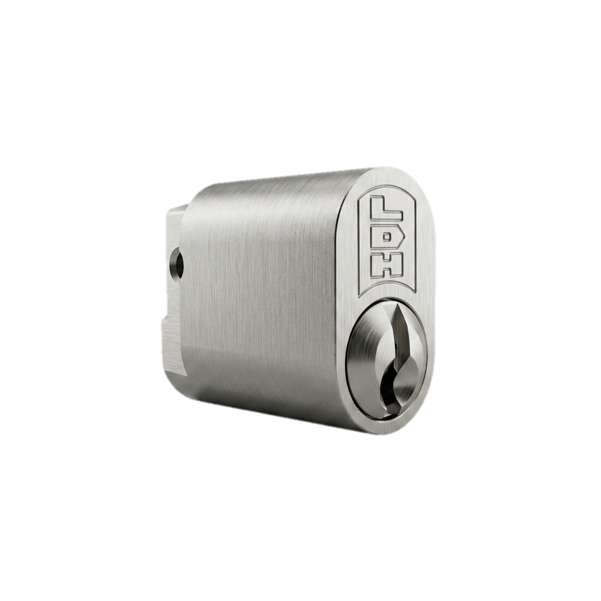

Protector Oval Cylinders

  • Solid Brass Barrel and Casing (Cold Extruded Casing for better wearability).
  • C4 Broaching x 34mm standard length
  • Stainless Steel Spring
  • Super Precision Machined Pins with rounded end
  • Z Cam fitted as standard – others on request
  • Hooded barrel front is slotted so key head actually turns the barrel and operates mechanism – rather than the often frail (deep cuts near shoulder) key shank
  • Large easy operation Keyhead with Coloured ID inserts.
  • Can be supplied keyed alike, keyed to differ, with OZX1 restricted barrel or your own suitable restricted barrel can be fitted
  • Extended cylinders (54, 74, 94mm) available ex stock
  • Extensive specialist lock-smithing / manufacturing – please enquire
  • Complementary range of Euro Profile cylinders also stocked
  • Brass, Chrome Plate & Satin Chrome finishes as standard
  • Compatible with Lockwood, Legge, IR, Boyd etc. Architectural Locks

For further information, click here to read through the document.
